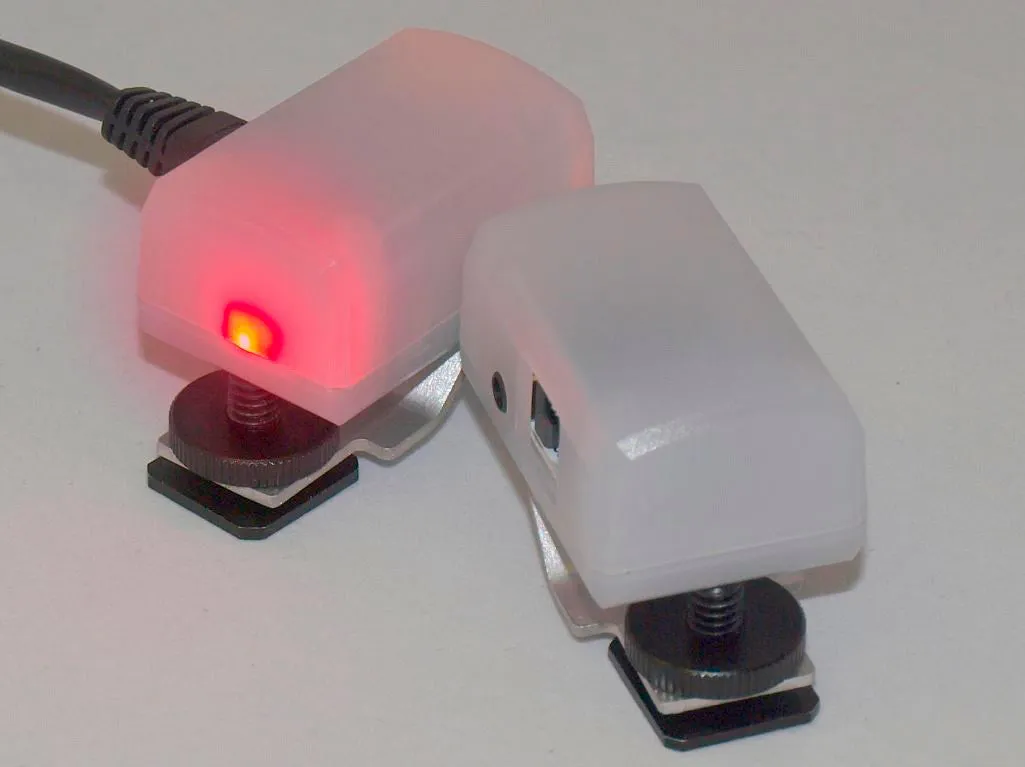

The TL-2 Tally Light is compatible with the tally outputs on the front of the TriCasterTM 300 and provides both a red program and green preview indicators for the camera operator and an ultra-bright LED tally for the on-camera talent. The talent tally can be disabled via a jumper if desired. It connects to the TriCaster TCXD300 via a stereo 3.5mm(1/8) phone jack.
Used directly with a TriCaster Studio or Broadcast you get the red program and ultra-bright talent LEDs. Again this is connected via the 1/8 jack.
The TL-XD is also compatible with the TLC-6 tally light controller for all standard def TriCasters. It connects to the TLC-6 via the RJ-45 jack and Ethernet-style cable. With this configuration you get the red program, green preview and yellow effects LEDs as well as the talent tally.
When used with a TLC-8d controller and a TriCaster 850 or 450 the TL-2 supports the red program and bright talent tally.
Features:- 3 Status LEDs: Red - Program, Green - Preview (TC300 or with TLC-6),Yellow - Effects (w/TLC-6 )
- Large Ultra Bright Talent Tally (Software controllable w/TLC-6)
- Multiple connection Option:
- RJ-45, 3.5mm Phone
- Compact and Lightweight
- Accessory Shoe mount
