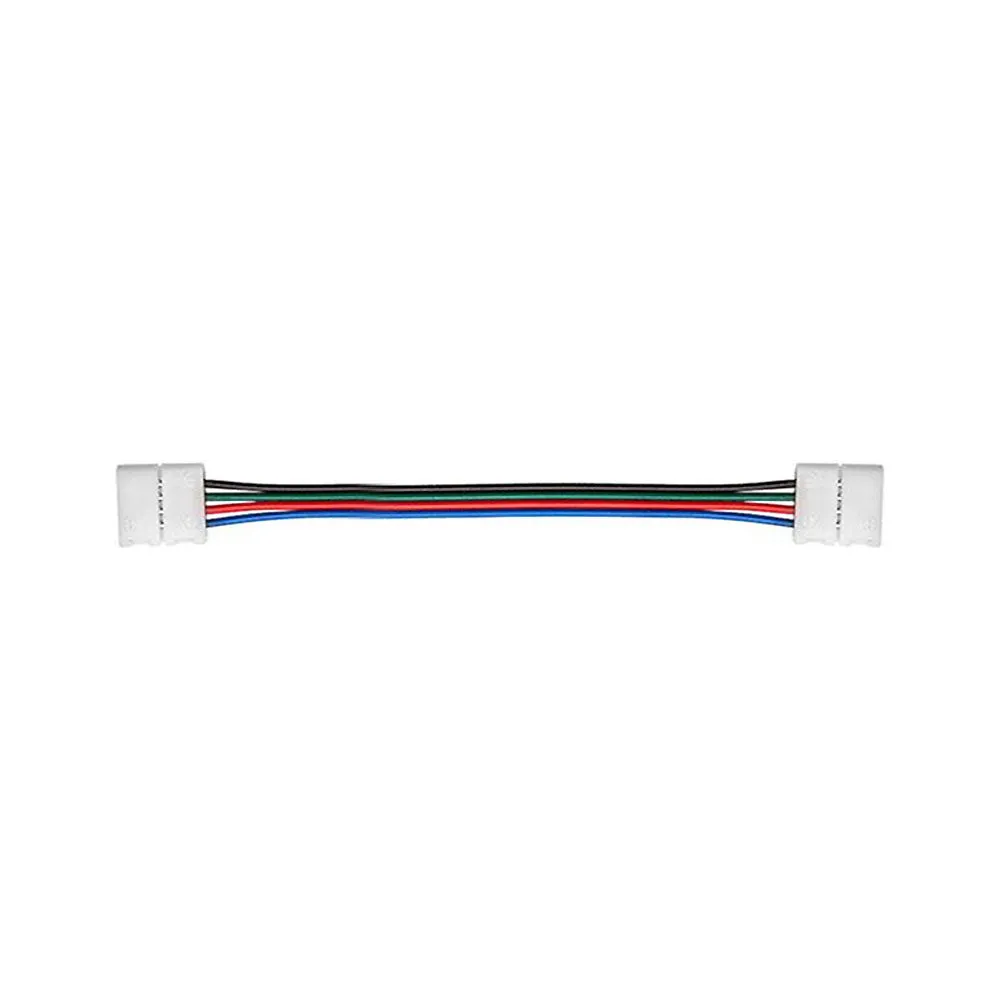

RGB LED Clip-On Jumper is easy to use with LED RGB Tape Light systems. The 10mm Power Clip Jumper allows the LED RGB tape light to insert into the connector and seat properly under the terminals.
Solderless clip connectors allow for easy configuration of your LED RGB Tape Lighting system. Step 1 Dezigns LED RGB CLIPTIGHT Jumper fits 5050 RGB LED Tape Lights with a 10mm width, and 4-pin connection on each end.
The connector ends of the jumper are made from PBT heat-resistant material, which protects the LED strip from high temperatures. No screw terminals, simply slide in the tape light and fold down the clip for a secure connection.
Specifications
- Input Voltage: 12V or 24V DC
- Clip-On Connector Sizes: 10 mm wide
- Jumper Length: 5.5 in
- Jumper Length (metric): 140 mm
- Conductors: 4
- Environment: Dry Location
- Warranty: 1 year

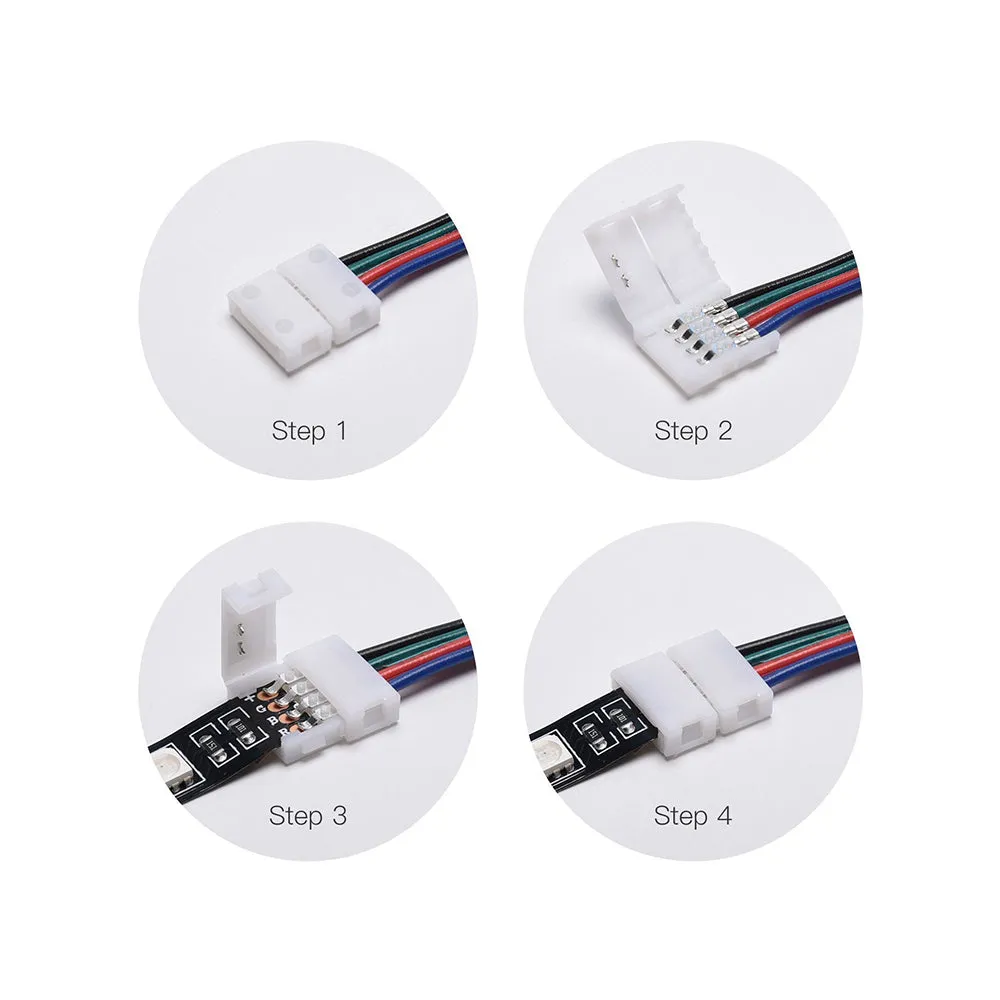

Installation
- Pop open the clip on the side.

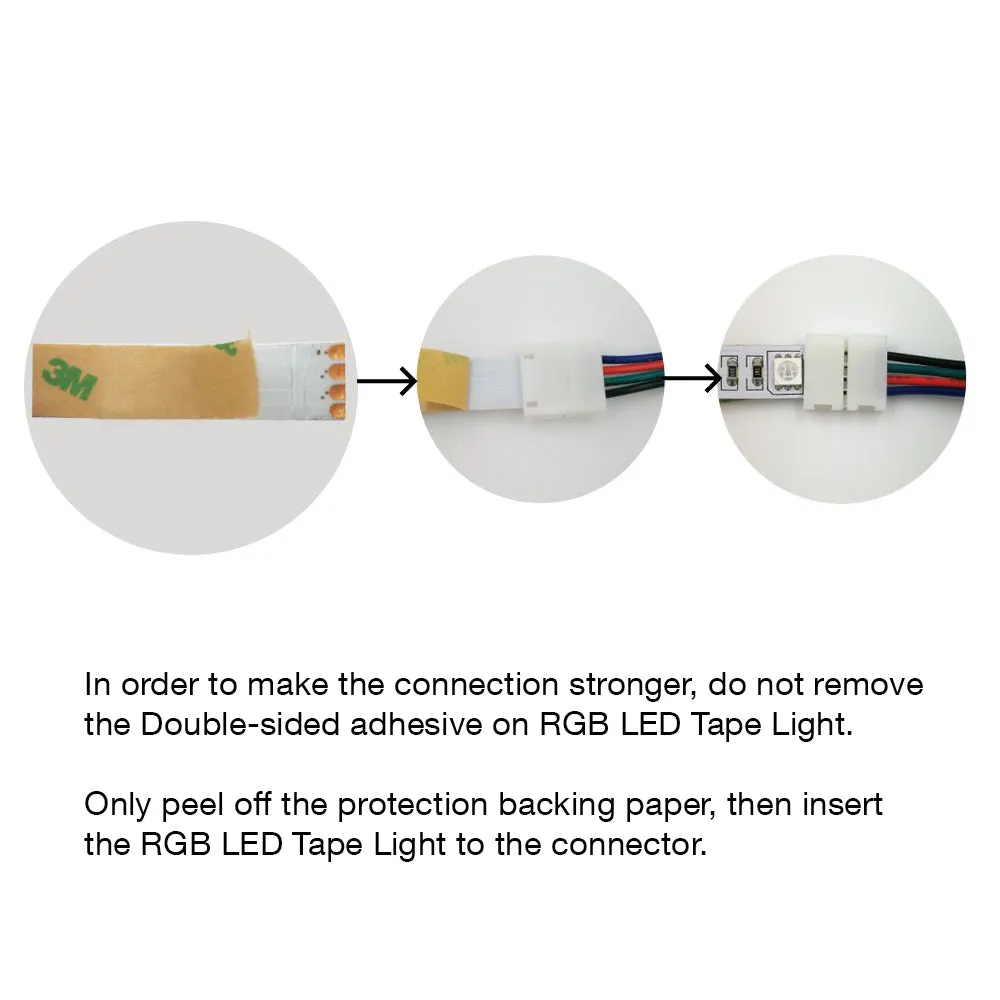

- Slide the 10mm LED RGB tape light inside the clip underneath the contact prongs.
- Make sure the side of the LED Tape light aligns with the " -" polarity.
- Fold over the connector clip.
